How To Connect Apple Pencil To iPad

Ali Mohammadi

person drawing woman character

The Apple Pencil is a powerful tool that can transform your iPad into a digital canvas or notepad. Connecting your Apple Pencil is the first step to unlocking its full potential, and we’re here to guide you through the process. Whether you have a first or second-generation Pencil, or even need to use the USB-C adapter, we’ve got you covered.

Connecting an Apple Pencil to your iPad is an easy process that can significantly enhance your device’s capabilities. Whether it’s for artistic expression or precise note-taking, make sure your Pencil is compatible and properly connected to unleash its full potential.

Connecting Your Apple Pencil

The Apple Pencil is a fantastic tool for drawing, note-taking, and more on your iPad. But before you can unleash your creativity, you need to connect it. Luckily, the process is simple and varies slightly depending on your iPad and Pencil model.

There are now four generations of Apple Pencil, and the way you connect them to your iPad depends on which one you have:

Apple Pencil (1st generation)

1. Remove the cap from your Apple Pencil to reveal the Lightning connector.

2. Plug the Lightning connector into the Lightning port on your iPad.

3. A “Pair” button will appear on your iPad’s screen. Tap it to connect.

  • iPad Model: iPad with Lightning connector (6th to 9th generation)
  • Connection Method: Plug the Apple Pencil directly into the Lightning connector on the bottom of your iPad.
  • iPad Model: iPad with USB-C connector (10th generation)
  • Connection Method: Use the USB-C to Apple Pencil Adapter (sold separately) to connect the Apple Pencil to the USB-C port on your iPad.

Apple Pencil (2nd generation)

1. Attach your Apple Pencil magnetically to the flat edge on the right side of your iPad.

2. A “Pair” button will appear on your iPad’s screen. Tap it to connect.

  • iPad Model: iPad with a flat edge (Pro, Air, mini)
  • Connection Method: Attach the Apple Pencil to the magnetic connector on the side of your iPad.

Apple Pencil (USB-C)

Your Apple Pencil (USB-C) charges while it’s connected to your iPad via the USB-C port. You can also charge it using a USB-C cable and a power adapter.

  1. Locate the USB-C port on your compatible iPad.
  2. Slide open the magnetic cap on the end of your Apple Pencil (USB-C).
  3. Connect the exposed USB-C connector on the Apple Pencil directly into the USB-C port on your iPad.
  4. A pairing request will appear on your iPad’s screen. Tap “Pair” to complete the connection.

Using Lightning to USB-C Adapter For Apple Pencil

**Note:** This applies to the 1st generation Apple Pencil and the 10th generation iPad.

1. Remove the cap from your Apple Pencil to reveal the Lightning connector.

2. Plug the Lightning connector into the USB-C to Apple Pencil Adapter.

3. Connect a USB-C cable to the adapter and then to your iPad’s USB-C port.

4. A notification will appear on your iPad’s screen indicating the Pencil is connected.

  • iPad Model: iPad with USB-C connector (10th generation, Air 5th gen, Mini 6th gen, Pro models with M1 chip or later)
  • Connection Method: Plug the Apple Pencil directly into the USB-C port on your iPad.

Apple Pencil Pro

Connecting the Apple Pencil Pro involves a slightly different approach:

  1. Ensure Bluetooth is enabled on your iPad.
  2. Press and hold the top button on your Apple Pencil Pro for a few seconds until the status light starts flashing white.
  3. On your iPad, go to Settings > Bluetooth.
  4. Your Apple Pencil Pro should appear in the list of available devices. Tap on it to connect.

For all Apple Pencils:

  • Once you’ve connected your Apple Pencil, a pop-up will appear on your iPad asking you to pair it. Tap “Pair.”
  • Your Apple Pencil is now connected and ready to use!

Troubleshooting Connection Issues

If you’re having trouble connecting your Apple Pencil, here are some troubleshooting steps you can try:

  1. Check Bluetooth: Make sure Bluetooth is turned on in your iPad’s settings. Go to Settings > Bluetooth and toggle it on if it’s off.
  2. Charge Your Apple Pencil: If your Apple Pencil is low on battery, it may not connect. Charge it for a few minutes and then try again.
  3. Restart Your iPad: Sometimes, a simple restart can fix connection issues. Turn off your iPad, wait a few seconds, and then turn it back on.
  4. Check for Updates: Make sure your iPad’s software is up to date. Go to Settings > General > Software Update and install any available updates.
  5. Forget and Re-pair: Go to Settings > Bluetooth. Tap the info button next to your Apple Pencil and choose “Forget This Device.” Then, try to connect your Apple Pencil again.
  6. Check for Compatibility: Make sure your Apple Pencil is compatible with your iPad model. You can check Apple’s website for compatibility information.

Tips for Using Your Apple Pencil

  • Double-tap (2nd generation and Pro): You can customize the double-tap feature on the 2nd generation and Pro Apple Pencils to quickly switch between tools in supported apps.
  • Charge while connected (2nd generation and Pro): Your Apple Pencil (2nd generation and Pro) will charge wirelessly while attached to your iPad.
  • Check battery level: You can see your Apple Pencil’s battery level in the Today View widget or in the Apple Pencil settings. Go to Settings > Apple Pencil to view details.

If you’re still experiencing issues, contact Apple Support for further assistance.

Compatibility Chart

Here’s a quick reference to see which Apple Pencil is compatible with your iPad model:

Apple PencilCompatible iPad Models
1st GenerationiPad mini (5th generation)
iPad (6th, 7th, 8th and 9th generation)
iPad (10th generation)*
iPad Air (3rd generation)
iPad Pro 12.9-inch (1st and 2nd generation)
iPad Pro 10.5-inch
iPad Pro 9.7-inch
* You need the USB-C to Apple Pencil Adapter to pair and charge Apple Pencil with iPad (10th generation).
2nd GenerationiPad mini (6th generation)
iPad Air (4th or 5th generation)
iPad Pro 12.9-inch (3rd, 4th, 5th, or 6th generation)
iPad Pro 11-inch (1st, 2nd, 3rd, or 4th generation)
Apple Pencil (USB-C)iPad Pro 13-inch (M4)
iPad Pro 11-inch (M4)
iPad Air 13-inch (M2)
iPad Air 11-inch (M2)
iPad (10th generation)
iPad mini (6th generation)
iPad Air (4th or 5th generation)
iPad Pro 11-inch (1st, 2nd, 3rd, or 4th generation)
iPad Pro 12.9-inch (3rd, 4th, 5th or 6th generation)
Apple Pencil ProiPad Pro 13-inch (M4)
iPad Pro 11-inch (M4)
iPad Air 13-inch (M2)
iPad Air 11-inch (M2)

With these simple steps and troubleshooting tips, you’ll have your Apple Pencil connected to your iPad in no time, ready to capture your ideas and express your creativity.

Key Takeaways

  • Compatibility Check: Ensure your Apple Pencil is compatible with your iPad model.
  • Pairing Process: Different pairing methods for 1st and 2nd generation Apple Pencils.
  • Troubleshooting: Steps to take if your Apple Pencil won’t pair.

Here are some additional tips:

  • Make sure that Bluetooth is turned on on your iPad.
  • If you’re having trouble connecting your Apple Pencil, make sure that it is charged.
  • You can also restart your iPad and try connecting again.

Understanding Compatibility

Before attempting to connect your Apple Pencil, it’s crucial to ensure compatibility. The 1st generation Apple Pencil works with earlier iPad models, while the 2nd generation is compatible with more recent versions. Check Apple’s official compatibility guide for details.

Pairing Your Apple Pencil

Prerequisites for Apple Pencil Connection

  • Compatible Devices: Check your iPad’s compatibility with the Apple Pencil:
    • 1st Generation Apple Pencil: Works with iPad 6th generation and later, iPad Air 3rd generation, iPad Mini 5th generation, and certain iPad Pro models.
    • 2nd Generation Apple Pencil: Compatible with iPad Air 4th generation and later, iPad Mini 6th generation, and newer iPad Pro models​​.
  • Sufficient Battery: Ensure your Apple Pencil is charged.
  • Clean Connection Points: The Lightning connector (for the 1st generation) and the magnetic connector (for the 2nd generation) should be clean.

For USB-C Apple Pencils

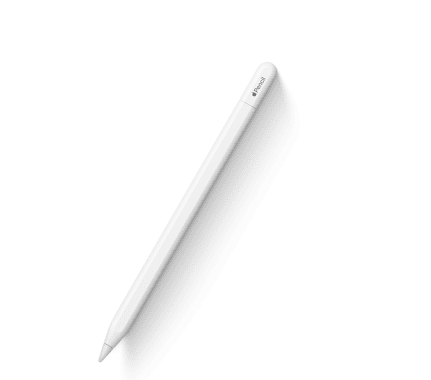

Apple Pencil USB-c
Apple Pencil USB-c

There are two scenarios depending on your iPad model:

For iPads with a flat edge (Pro, Air, mini):

  1. Magnetic Attraction: Simply bring the Apple Pencil near the flat edge of your iPad on the right side. You’ll feel a magnetic pull as it snaps into place.
  2. Pairing Prompt: On your iPad, a pop-up will appear asking you to “Connect” or “Tap to Connect.” Tap it.
  3. Ready to Go! Your Apple Pencil is now paired and ready to use!

For iPads with a USB-C port (10th generation):

  1. Plug it in: Slide open the cap on the end of the Apple Pencil to reveal the USB-C connector.
  2. Connect to iPad: Plug the USB-C connector into the USB-C port on your iPad.
  3. Pairing Up: A pop-up will appear on your iPad asking you to “Tap to Connect.” Tap it.
  4. Charge and Pair: While connected, your Apple Pencil will also start charging. You can disconnect it once the pairing is complete.
  5. All Set! Your Apple Pencil is now paired and ready to use!

Additional Tips:

  • Make sure your iPad is running iPadOS 17.1 or later.
  • Ensure Bluetooth is turned on on your iPad.
  • If you’re having trouble connecting, try restarting your iPad or checking for debris in the ports.

For 2nd Generation Apple Pencils

Apple Pencil 2nd Gen
Apple Pencil 2nd Gen
  • Update Your iPad: Ensure your iPad is running iPadOS 17.1 or later.
  • Magnetic Connection: Simply attach your Apple Pencil to the magnetic connector on the side of your iPad.
  • Attach the Pencil to the magnetic connector on the long side of the iPad.
  • Tap “Connect” when the picture of the Apple Pencil appears on the screen​​.

For 1st Generation Apple Pencils

Apple Pencil 1st Gen
Apple Pencil 1st Gen
  • Direct Connection: Plug your Apple Pencil into the Lightning connector on your iPad.
  • Pairing Prompt: Tap ‘Pair’ when the notification appears.
  • Remove the cap from the Lightning connector.
  • Plug it into the iPad’s Lightning connector (charging port).
  • A pairing message will appear. Select “Pair”​

Practical Applications

Using an Apple Pencil with your iPad opens up a world of possibilities. From taking notes in class to sketching out design ideas, the precision and ease of use make it an invaluable tool for students, professionals, and creatives alike.

Real-World User Experiences

Reddit users have shared various experiences with their Apple Pencils. Some found success with a force restart, while others had to go through a series of steps including forgetting the device and re-pairing. These anecdotes highlight the importance of persistence and trying different methods.

In one case a user faced issues connecting their Apple Pencil to an iPad Pro. Despite multiple restarts, the pencil wouldn’t pair. The solution? A force restart of the iPad, which finally resolved the issue. This highlights the importance of trying different troubleshooting methods.

Latest Technological Advancements

The Apple Pencil has evolved significantly since its introduction. The latest models offer features like wireless charging and improved latency, making the experience more seamless and intuitive.

Troubleshooting Connection Issues

Sometimes, your Apple Pencil might not connect as expected. Here are some steps to resolve this, inspired by real-world scenarios shared on Reddit:

  1. Restart Your iPad: Often, a simple restart can resolve connection issues.
  2. Forget and Re-pair: Go to Bluetooth settings, forget the Apple Pencil, and then try re-pairing.
  3. Force Restart: Some Reddit users found that a force restart of the iPad resolved their issues.
  4. Check for Software Updates: Ensure your iPad’s software is up to date.
  5. Contact Support: If all else fails, reaching out to Apple Support can be a helpful step.
  • Reconnection: If disconnected, follow the same steps to reconnect the Apple Pencil​​.
  • Connection Troubles: If you’re having trouble connecting:
    • Ensure Bluetooth is enabled on your iPad.
    • In Bluetooth settings, if you see the Apple Pencil under “My Devices,” select “Forget This Device,” and try connecting again.
    • For the 1st generation Apple Pencil, ensure it’s charged before trying to pair.
    • For the 2nd generation, align the Pencil correctly on the magnetic connector.
    • Restart your iPad and attempt to reconnect​​.

Maximizing Your Apple Pencil Experience

  • Explore iPad Settings: Customize Apple Pencil settings like double-tap gestures and palm rejection sensitivity.
  • Creative Apps: Utilize creative apps from the App Store to enhance your artistic endeavors.
  • Practice and Experiment: Familiarize yourself with the Apple Pencil through regular use.
  • Protect Your Apple Pencil: Consider a protective case or sleeve.

Additional Resources

For more detailed instructions and support, visit Apple’s official support page on pairing Apple Pencils.

Official Pairing Instructions from Apple

Apple’s support page outlines the pairing process for different Apple Pencil generations:

  • Apple Pencil (USB-C): Connect via a USB-C cable to your iPad.
  • Apple Pencil (2nd Generation): Attach to the magnetic connector on your iPad.
  • Apple Pencil (1st Generation): Plug into the Lightning connector or use a USB-C to Apple Pencil Adapter for newer iPad models.

Troubleshooting Common Issues

  • Apple Pencil Not Pairing: Ensure your iPad’s Bluetooth is on and try forgetting the device before re-pairing.
  • Apple Pencil Not Charging: Check the connection and ensure your iPad’s port is clean and functional.
  • Unresponsive Apple Pencil: A force restart of the iPad can sometimes resolve connectivity issues.

FAQs

How do I connect my Apple Pencil to my iPad?

For a 2nd generation Apple Pencil, attach it to the magnetic connector on your iPad. For a 1st generation, plug it into the Lightning connector. A pairing prompt should appear.

What if my Apple Pencil won’t connect?

Try restarting your iPad, forgetting the Apple Pencil in Bluetooth settings, and then re-pairing. If issues persist, consider a force restart or checking for software updates.

Can I use my Apple Pencil with any iPad?

No, Apple Pencils are only compatible with certain iPad models. Check Apple’s compatibility guide for more information.

How do I know if my Apple Pencil is charged?

You can check the battery status of your Apple Pencil in the iPad’s widgets or settings.

Is it possible to use an Apple Pencil with non-Apple devices?

No, Apple Pencils are designed exclusively for use with compatible iPads.

What should I do if my Apple Pencil won’t pair with my iPad?

Try restarting your iPad, turning Bluetooth off and on, and ensuring the pencil is properly charged and connected.

Can I use an Apple Pencil with any iPad model?

No, Apple Pencils are only compatible with specific iPad models. Refer to Apple’s compatibility guide for details.

How do I charge my Apple Pencil?

Charge the 1st Generation Apple Pencil by plugging it into your iPad’s Lightning connector. The 2nd Generation charges wirelessly when attached to the side of compatible iPad models.

Can I use an Apple Pencil with any iPad?

No, only specific iPad models are compatible with each generation of the Apple Pencil.

How do I clean my Apple Pencil?

Use a soft, damp cloth for cleaning. Avoid abrasive materials.
